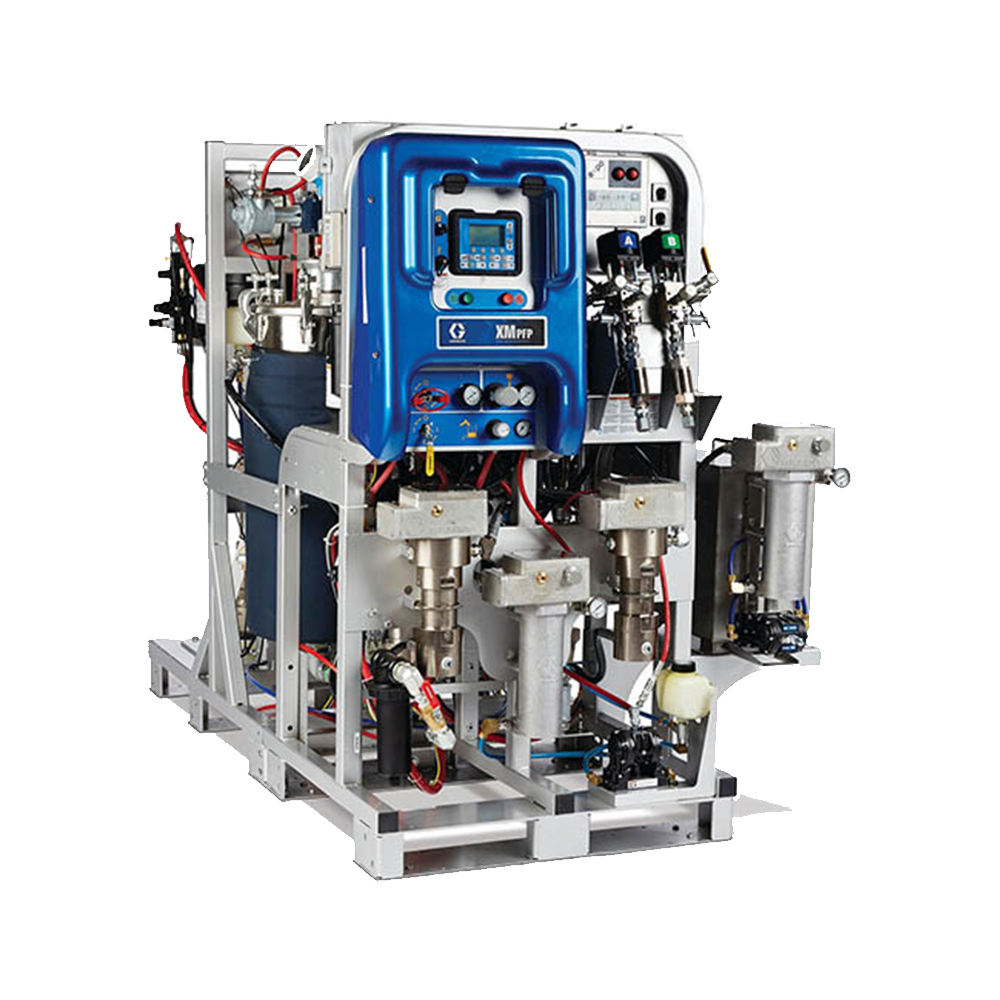

Graco XM PFP Sprayer
Description
Technical Specifications
Documents
Quick Overview
Designed for the application of epoxy intumescent fire protection coatings, the Graco XM PFP is the first and only system that is ATEX and IECEx certified for use in explosive atmospheres; it is rated for both electrical and mechanical construction.
Graco XM PFP Sprayer Features
Weight-based operation for fast, easy ratio assurance (within +/– 5%)
Save time with fast ratio checks – less than 90 seconds
Consistent temperature control, fast start-up times due to performance of heating system
Easy user controls and data reporting
Ensures accurate, on-ratio mixing to reduce material waste, handles two-part materials from 1:1 to 10:1
| Technical Specifications | |
|---|---|
| Mix Ratio Range | 1:1 - 4:1 (In 0.01 increments) |
| Max Flow Rate | 11.4 lpm (3 gpm) |
| Air Inlet | 1" NPT(F) |
| Max Fluid Working Pressure of mixed material | 6000 psi |
| Max Fluid Working Pressure of mixed material | 414 bar |
| Max Fluid Temp | 70°C |
| Incoming Air Supply Pressure Range | 5.5-10.3 bar |
| Incoming Air Supply Pressure Range | 80-150 psi |
| Max Pump Air Set Pressure | 7 bar |
| Max Pump Air Set Pressure | 100 psi |
| Max Tank Pressure | 7 bar |
| Max Tank Pressure | 100 psi |
| Max Air Consumption | 5 m3 /min |
